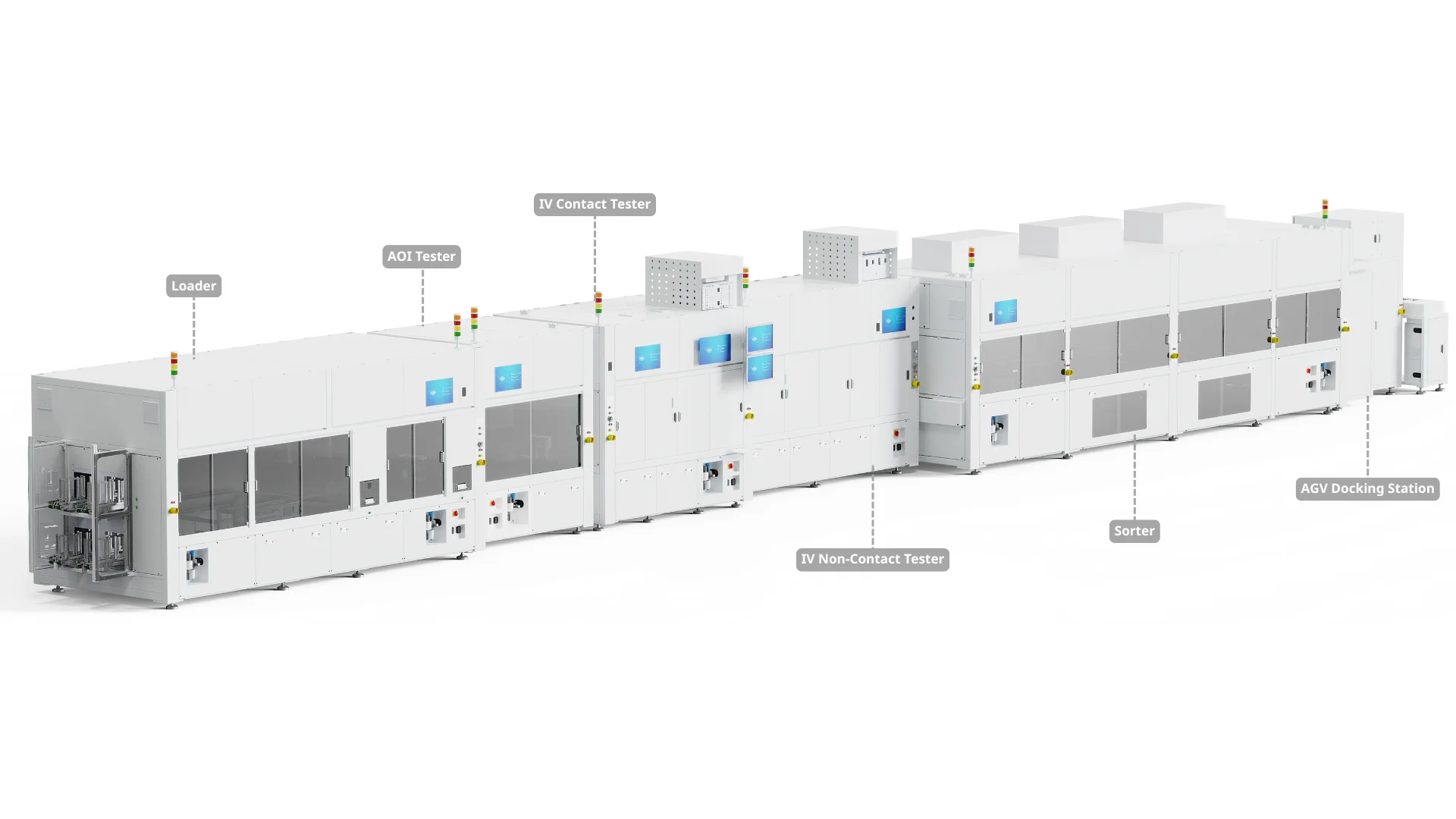

Through multiple inspection systems including AOI, IV/EL, and PL, the machine automatically sorts cells into bins based on inspection results, and finally transfers cassettes via shuttle carts to AGV docking stations or packaging lines, achieving fully automated end-to-end operation. As the last critical process in the PV cell production line, this equipment performs comprehensive quality inspection and grading of cells to ensure outgoing product quality, providing reliable quality assurance for downstream module production.
Ultra-Low Breakage Rate
High-Efficiency Production Takt Time
Positioning Accuracy
Positioning Accuracy
BC、TOPCon
Wafer Size：BC：182–230mm(Full-cut); 182×91–210×105mm(Half-cut); TOPCon：182–230mm(Full-cut); 182×91–210×105mm(Half-cut)
Throughput：BC：≥5000 pcs/h (Single track, full-cut); TOPCon：≥4800 pcs/h (Single track, full-cut)
Breakage Rate：BC：≤0.05% (excl. incoming); TOPCon：≤0.04% (excl. incoming)
Uptime：99%
